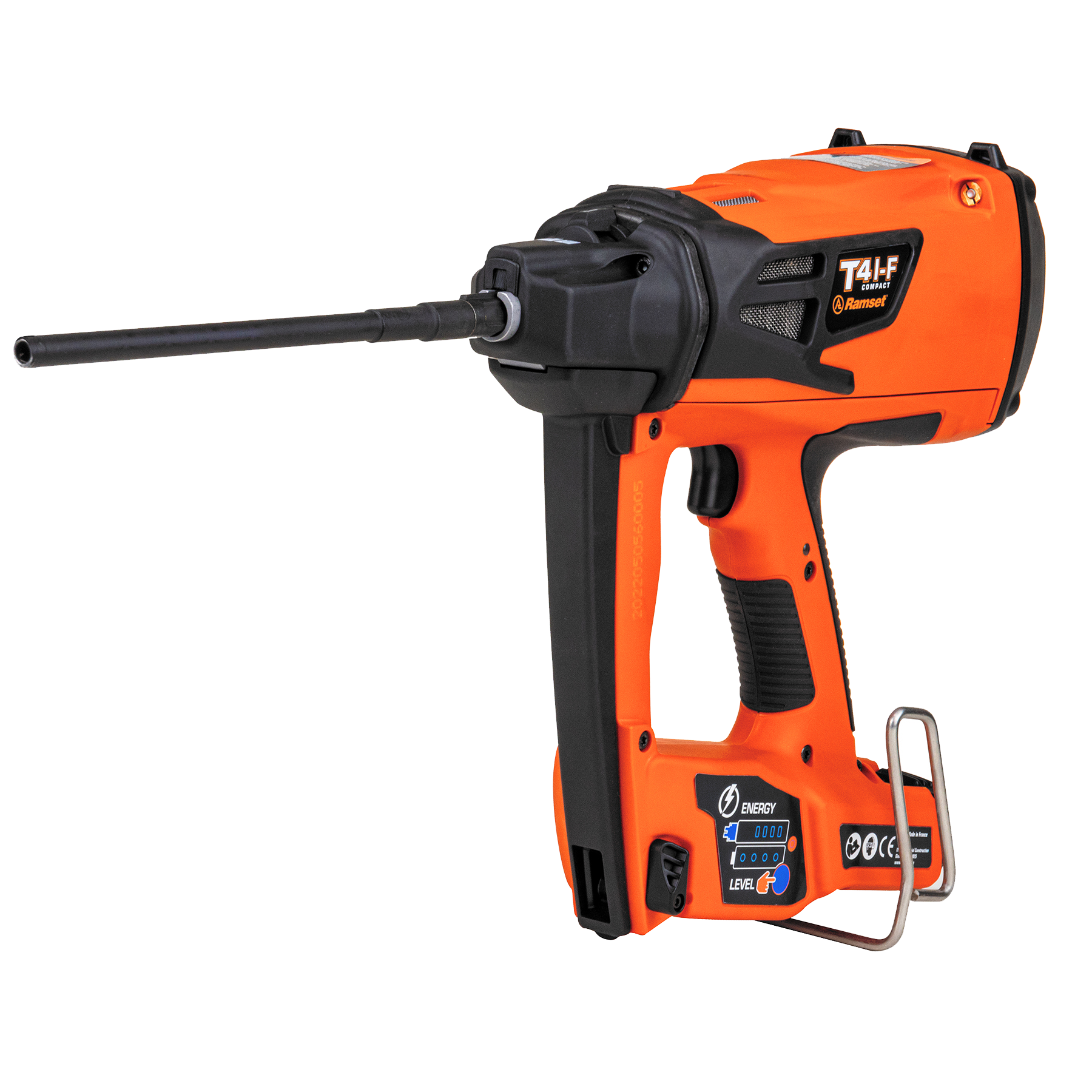

FASTEN INSULATION IN ONE STEP WITH RAMSET’S FULLY AUTOMATIC FASTENING SYSTEM

The T4 I-F System is 4 times faster than the traditional stick pin installation method. It allows the installer to attach insulation in one simple step without the use of adhesives or cutting spindle insulation anchors anymore.  The latest tool in the T4 line up provides 19% more power, 7% less pushdown force, 10,000 shot battery life, all the while weighing 8% lighter than the previous model.

ADVANTAGES

• Saving time and labour cost over the traditional insulation fastening method.
• Fasten the insulation directly to concrete, hollow block and steel studs. No need to glue and stickpin insulation anchors anymore.
• The fastening is constant and clean looking.
• Light weight of 7.3lbs means lower operator fatigue.
• The tool allows you to fasten the insulation in tight spaces through pipes and sprinkler systems.
• The T4FUEL can shoot approx. 600 shots before replacing.
• The system can be used year round; unlike stick pins, you won’t be restricted by cold temperature or wet surfaces.
• Operating temperature from -15 C to 49 C
• Thermal bridging: 99.5% efficiency.
• 1″ – 6″ insulation pin capacity.
• Depth of drive adjuster.
• Fuel and battery gauges.
• Push down force of 9.2 lbs
• Compact and lightweight lithium ion battery provides 10,000 shots per charge.

FASTENER SPECIFICATIONS

The fastener is made in Canada and assembly is clearly branded Ramset along with the length of the fastener assembly.

Pin Material: Heat treated carbon steel

Pin Finish: Mechanical Zinc Plated

Washer Material: High Density Polyethylene (HDPE)

Holding Diameter: 3/8”

The fasteners used to attach Insulation (Rockwool, Expanded Polystyrene and Extruded Polystyrene) into Solid Masonry, Hollow Concrete Block and Steel Studs shall be a Ramset T4 I-F Fastener. The T4 I-F Fastener shall be fastened using the Ramset T4 I-F Gas Tool. The T4 I-F Fastener is made from High Density Polyethylene (HDPE) plastic and has a holding diameter of 2-3/8” (60mm) with the Ramset logo marking.

PERFORMANCE TABLES

THERMAL PERFORMANCE OF BUILDING ENVELOP ASSEMBLIES

In buildings, when insulating material is interrupted by a highly conductive material, thermal bridging takes place. Examples of thermal bridges include steel pins that interrupt the continuity of batt insulation and go through heavily insulated exterior walls. Simply put, thermal bridges occur where differences in material thermal conductivities result in significant lateral heat flow; e.g. heat flowing along the surface of a wall and then flowing through the wall via a steel pin.  The Calculations performed by the Advanced Thermal/Fluids Optimization, Modeling and Simulation (ATOMS) Laboratory, Department of Mechanical & Industrial Engineering, University of Toronto show that the Ramset T4 I-F is over 99% efficient whereas the stick pins can downgrade the efficiency by more than 10%.

These thermal bridges contribute to a multitude of problems, including, but not limited to:

• Added energy use during heating and cooling seasons
• Interior surface condensation which leads to:  High humidity levels that can lead to unusual concentrations of airborne contaminants and microbial growth° Rusting issues that can damage the structure
